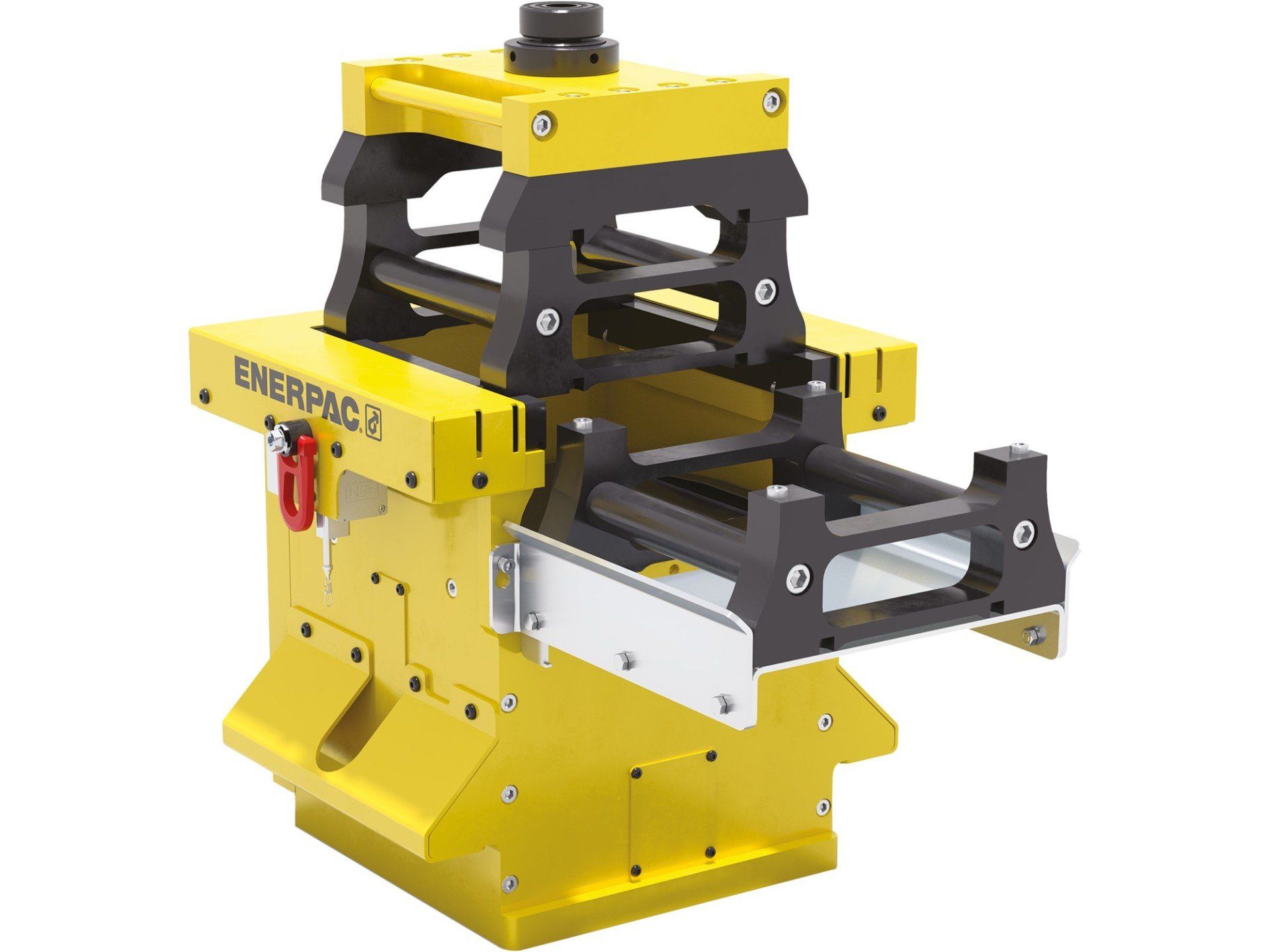

SCJ-SERIES SELF LOCKING CUBE JACK
INCREMENTAL LIFTING SYSTEM WITH AUTOMATED MECHANICAL LOCKING
System is automatically mechanically locked after the lifting or lowering stoke.
Self-aligning steel cribbing blocks save time, improve side load, and eliminate the need for wooden cribbing materials.
Jobs are completed more efficiently due to simplified operation sequence with 50% less cycles than climbing jacks.
End block with adjustable swivel saddle allows fine adjustment during set-up: 50 mm screw extension.
Low starting height of 494 mm: max jacking height up to 2067 mm.
Can be operated with Enerpac's 700 bar hydraulic power units.
Lloyds witness tested to 125% of maximum working load.
WHY USE SELF-LOCKING JACKS?
The SCJ_50 Self locking Cube Jack is a safer, more efficient alternative to the jack-and-pack method with wooden cribbing.
The SCJ_50 is derived from the proven Enerpac Jack-up System. The Cube Jack has a small footprint and is useable in confined spaces, providing heavy lift contractors with a stable lift up to 2 metres. The cribbing blocks are lightweight and can be handled manually.
MARKETS AND APPLICATIONS
Applications with a minimum starting height of 494 mm and requirement to lift up to 2067 mm.
*Power Generation-transformer jacking
*Mining- equipment maintenance
*Heavy Transport- vehicle unloading
*Oil & Gas - module jacking
*Construction - bridge jacking
*Industrial Movers - lofting, lowering and levelling of heavy equipment.
OPERATION IS SIMPLE:
Easy-to-use,
compact and portable jacking system that utilizes base lifting frames and self-aligning, lightweight steel cribbing blocks, instead of wooden cribbing materials.
Operation is simple:
1.Connect the Cube Jacks to the Enerpac Split-Flow Pump and select lifting mode on each base lifting frame2.Insert a cribbing block and actuate the Cube Jack until the cribbing block engages the lock mechanism.3.Retract the jack and repeat the process until the desired lifting height is reached. For the lowering operationselect lowering mode on each base lifting frame and reverse the process.
The Cube Jack End Block is equipped with an adjustable saddle for initial alignment with the load. All controls except for the main directional valve, which is on the hydraulic power unit, are included on the Cube Jack.MANUAL CRIBBING BLOCK INSERTIONCribbing blocks are easily managed by hand and the Cube Jack includes integrated fork pockets and lifting rings for effortless positioning.SYNCHRONOUS LIFTING & LOWERINGIf synchronization is required, the Cube Jack can accommodate stroke sensors and be used with any Enerpac Computer Controlled Synchronous Lifting System.Capacity Per Cube Jack:50 ton (500 kN)Maximum Lifting Height:2067 mmMaximum Operating Pressure:700 bar
